Allis Chalmers M100 Motor Grader Service Manual

$64.99

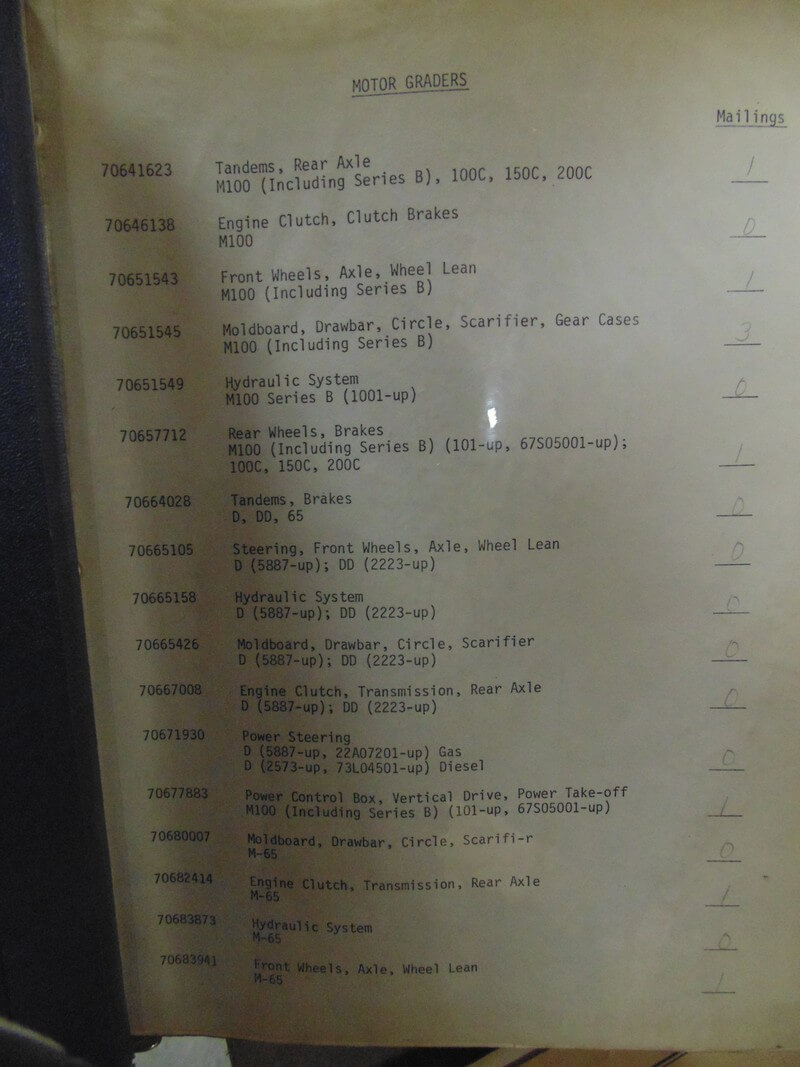

Tandems, Rear Axle M100 (Including Series B) 100C, 150C, 200C
Engine Clutch, clutch brakes- M100
Moldboard, drawbar, circle, scarifier, gear cases- M100 (Including series B)
Hydraulic system- M100 Series B (1001-up)
Rear wheels, brakes- M100 (including series B) (101-up, 67S05001-up); 100C, 150C, 200C
Tandems, brakes D, DD, 65
Steering, front wheels, axle, wheel lean- D (5887-up); DD (2223-up)
Hydraulic system- D (5887-up); DD (2223-up)
Moldboard, drawbar, circle scarifier- D (5887-up); DD (2223-up)
Engine Clutch, transmission, rear axle,- D (5887-up); DD (2223-up)
Power Steering- D (5887-up, 22A07201-up) Gas; D (2573-up, 73L04501-up) Diesel
Power control box, vertical drive, power take off- M100 (Including series B) (101-up, 67S05001-up)
Moldboard, drawbar, circle, scarifier- M-65
Engine clutch, transmission, rear axle- M65
Hydraulic system- M65
Front wheels, axle, wheel lean- M65

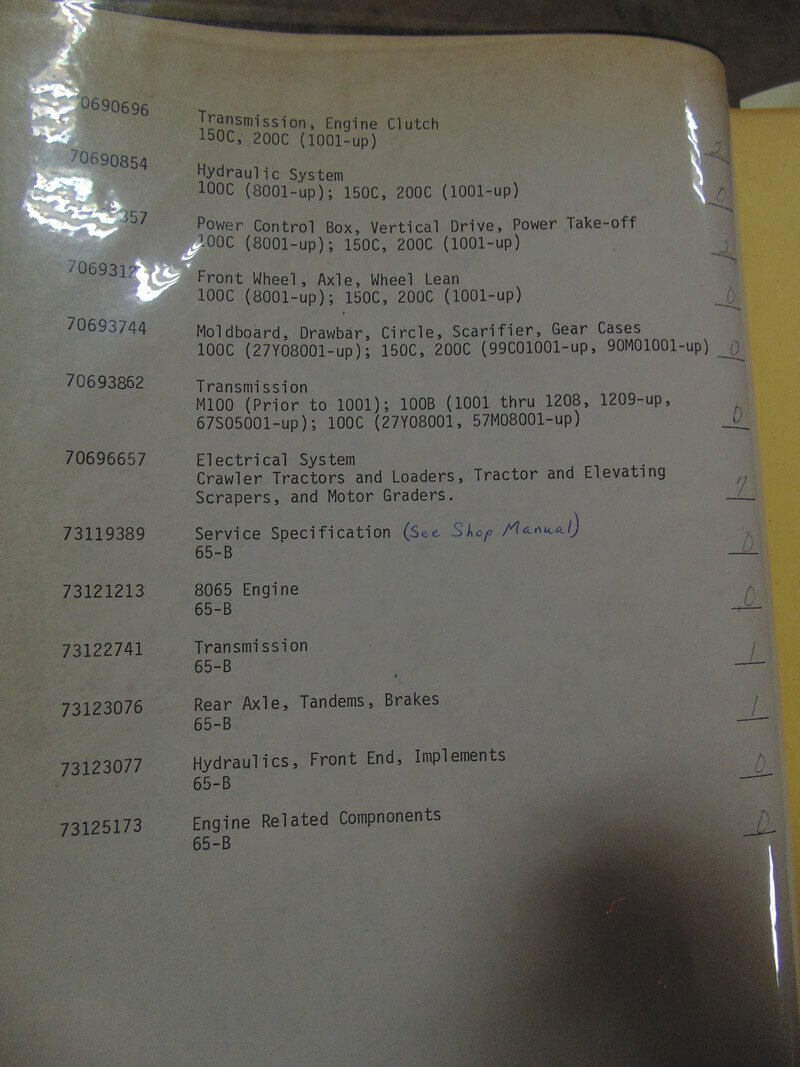

Transmission, Engine clutch – 150C, 200C (1001-up)
Hydraulic system- 100C (8001-up); 150C, 200C (1001-up)
Power control box, vertical drive, power take off- 100C (8001-up); 150C, 200C (1001-up)
Moldboard, drawbar, circle, scarifier, gear cases- 100C (27Y08001-up); 150C, 200C (99C01001-up, 90M01001-up)
Transmission- M100 (prior to 1001); 100B (1001 thru 1208, 1209-up, 67S05001-up); 100C (27Y08001, 57M08001-up)
Electrical system- crawler tractors and loaders, tractor and elevating scrapers, and motor graders.
Service Specifications- 65-B
8065 Engine 65-B
Transmission- 65-B
Rear axle, tandems, brakes- 65B
Hydraulics, front end, implements- 65-B
Engine related components- 65-B
