Allis Chalmers M100 Motor Grader Service Manual

$84.99

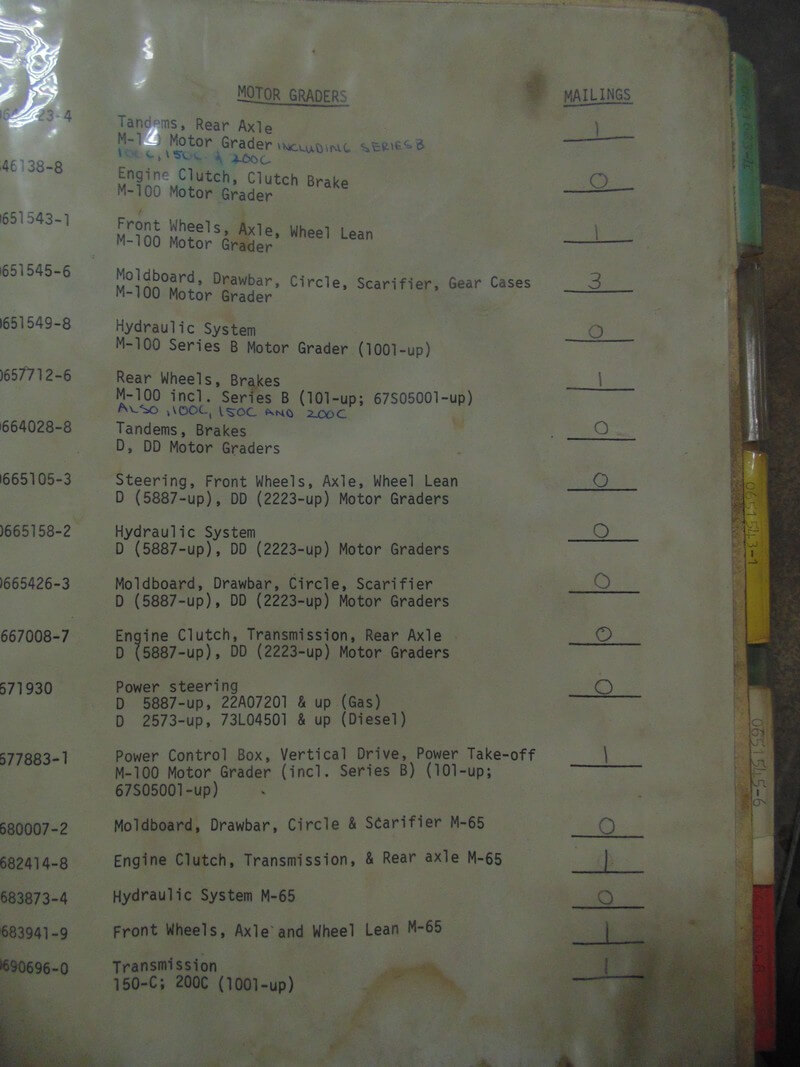

Tandems, rear axle- M100 Motor Grader
Engine clutch, clutch brake- M100
Front wheels, axle, wheel lean-M100
Moldboard, drawboard, circle, scarifier, gear cases- M100
Hydraulic system- M100 Series B (1001-up)
Rear wheels, brakes- M100 including series B (101-up; 67S05001-up)
Tandems, brakes- D, DD motor graders
Steering, front wheels, axle, wheel lean- D (5887-up); DD (2223-up) motor graders
Hydraulic system- D (5887-up); DD (2223-up) motor graders
Moldboard, drawbar, circle, scarifier- D (5887-up); DD (2223-up) Motor grader
Engine Clutch, transmission, rear axle- D (5887-up); DD (2223-up) motor grader
Power steering- D 5887-up, 22A07201 & up (Gas); D 2573-up, 73L04501 & up (Diesel)
Power control box, vertical drive, power take off- M100 Motor grader (including Series B) (101-up; 67S05001-up)
Moldboard, drawbar, circle and scarifier M65
Engine clutch, transmission, and rear axle- M65
Hydraulic system- M65
Front wheels, axle and wheel lean- M65
Transmission 150-C; 200C (1001-up)

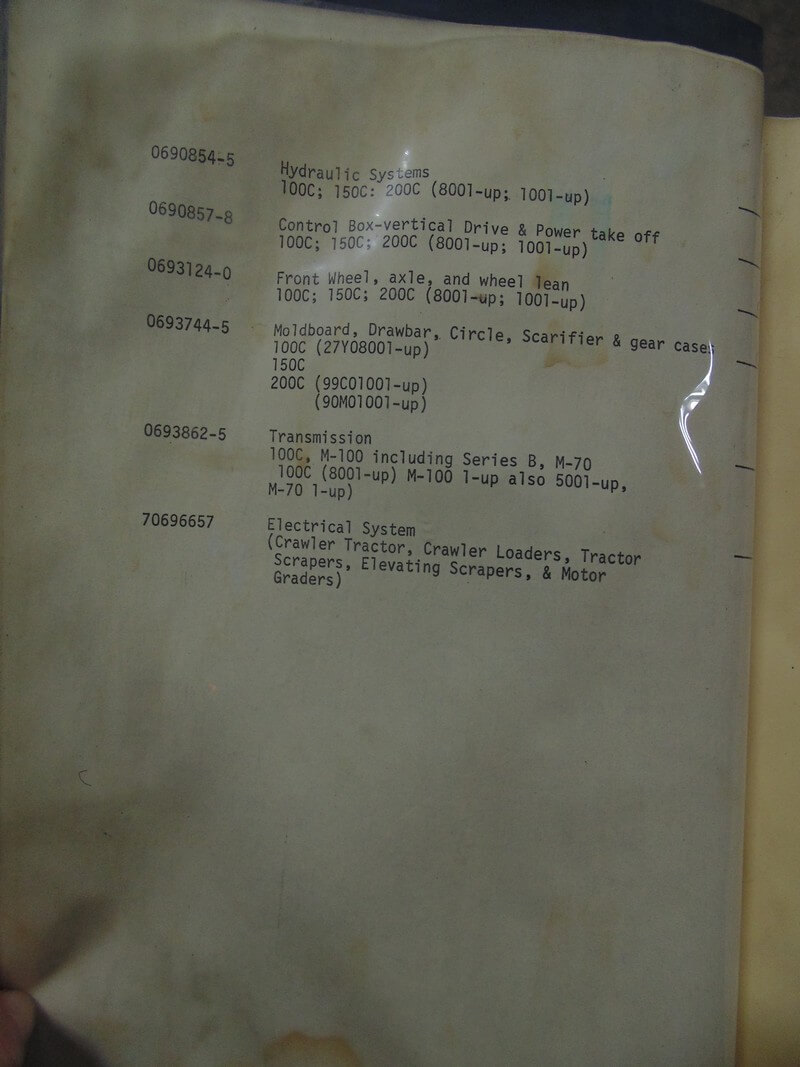

Hydraulic systems -100C; 150C; 200C (8001-up; 1001-up)
Control box- vertical drive and power take off 100C; 150C, 200C (8001-up; 1001-up)
Front wheel, axle and wheel lean- 100C; 150C; 200C (8001-up; 1001-up)
Moldboard, drawbar, circle, scarifier and gear- 100C (27Y08001-up); 150C; 200C (99C01001-up) (90M01001-up)
Transmission 100C, M100 including series B, M-70, 100C (8001-up) M100 (1-up also 5001-up), M-70 1-up)
Electrical system- crawler tractor, crawler loader, tractor scrapers, elevating scrapers, and motor graders
