Allis Chalmers M100 Motor Grader Service Manual

$84.99

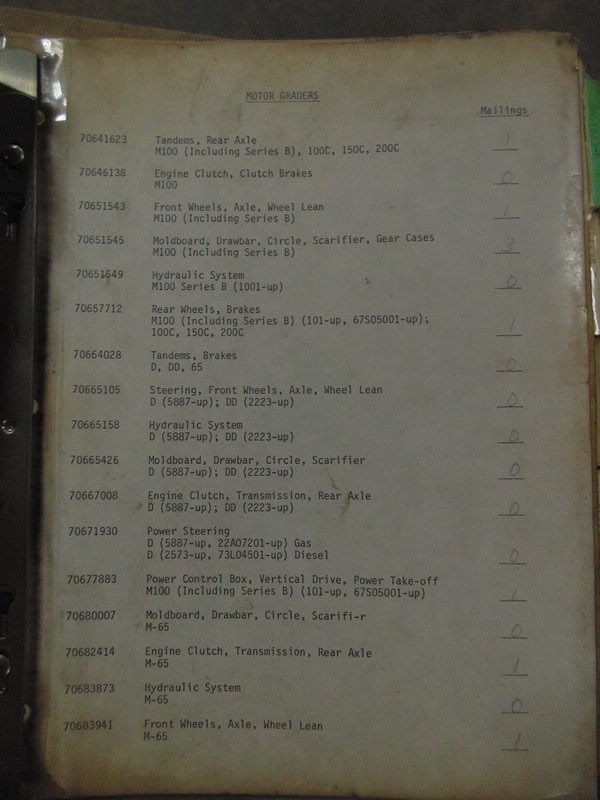

Tandems, rear axle- M100 (including series B) 100C, 150C, 200C
Engine clutch, clutch brakes M100
Front wheels, axle, wheel lean M100 (Including series B)
Moldboard, drawar, circle, scarifier, gear cases- M100
Hydraulic system M100 Series B (1001-up)
Rear wheels, brakes- M100 (including series B) (101-up; 67S05001-up); 100C, 150C, 200C
Tandems, Brakes D, DD, 65
Steering, front wheels, axles, wheel lean- D (5887-up); DD (2223-up)
Hydraulic system D (5887-up); DD (2223-up)
Moldboard, drawbar, circle, scarifier D (5887-up); DD (2223-up)
Engine clutch, transmission, rear axle0 D (5887-up), DD (2223-up)
Power steering- D (5887-up; 22A07201-up) Gas; D (2573-up, 73L04501-up) Diesel
Power control box, vertical drive, power take off- M100 (Including series B) (101-up; 67S05001-up)
Moldboard, drawbar, circle. scarifier- M65
Engine clutch, transmission, rear axle- M65
Hydraulic system- M65
Front wheels, axle, wheel lean- M65

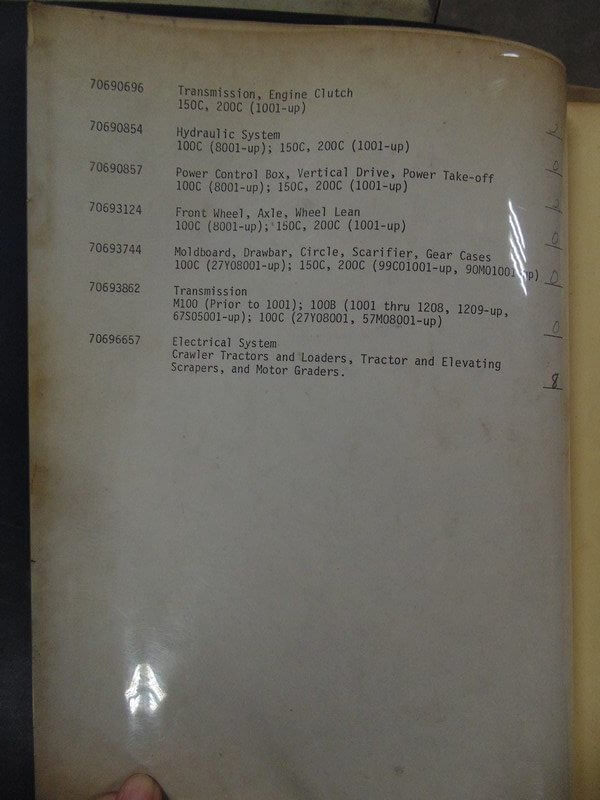

Transmission, Engine clutch- 150C, 200C (1001-up)
Hydraulic system- 100C, (8001-up); 150C, 200C (1001-up)
Power control box, vertical drive, power take off- 100C, (8001-up); 150C, 200C (1001-up)
Front wheel, axle, wheel lean- 100C (8001-up); 150C, 200C (1001-up)
Moldboard, drawbar, circle, scarifier, gear cases- 100C (27Y08001-up); 150C, 200C (99C01001-up, 90M01001-up)
Transmission- M100 (priorto (1001); 100B (1001 thru 1208, 1209-up, 67A05001-up); 100C (27Y08001, 57M08001-up)
Electrical system- crawler tractors and loaders, tractor and elevating scrapers and motor grader.
